Commodore
1541 Disk Drive serial number DA5 092088 made
in West Germany. |
|
Commodore
had produced a 5.25 inch disk drive for the
VIC 20, the VIC 1540. This however did not
work with the 64 because of timing problems,
so the 1541 was introduced with a revised
ROM. Both the 1540 and 1541 were unusual in
having their own onboard operating system
and memory. The disk drive connects to the
serial port making data transmission slow.
Up to four can be daisy-chained together and
a printer can be added provided it is at the
end of the chain. Each drive needs to have
its own device number, from 08 to 11, the
default being 08. This can be changed by software
or, as in the case of my K 0014427, the hardware
can be permanently changed. The 1541 is heavy
due to having a built-in power supply and
becomes very warm in operation. |
|
|
|

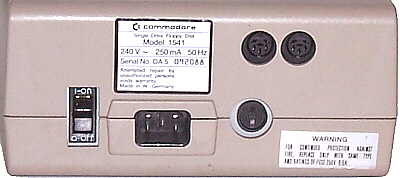

Rear View |
|
The disk drive connects
to the serial port. Up to four can be daisy-chained
together and a printer can be added provided
it is at the end of the chain.
|
|
|
|
My
1541s |
|
|
|
|
|
|
|
|
|
|
|
Serial
501808 (Japan) |
Serial
5023962 (Japan) |
Serial
DA5 087538 (W.Germany) |
VIC-1541 |
Awaiting
repair |
Awaiting
repair |
|
|
|
|
|
|
|
|
|
Serial
DA5 092088 (West Germany) |
Serial
DA5 119799 (W.Germany) |
Serial
K 0001563 (Japan) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Serial
K 0014427 (Japan) |
|
Serial
AA5018320 (Japan) |
|
|
Converted
to drive 09 |
|
Cream
to match the 64C |
|
|
One
of my original pair from 1983 |
|
and
with a lever lock |
|
|
|
|
|
|
|
The 1541's
user manual is complicated and
confusing and there are errors
in the instructions. This is not
helped by the fact that both the
VIC and the 64 use Basic 2.0 which
has no drive commands. The drive
itself has problems too. The worst
of these is the "save@"
option. This should allow a file
or program to be altered and then
resaved to disk. However, if the
new version is longer than the
original it is cut short. The
solution is to rename the old
version, then save the new version
and only delete the original once
the resave has been checked. |
|
Another,
potentially expensive, problem
is that the drive head forgets
where it is. To rectify this it
moves as far to the side as it
can, banging against the side
to make sure it can go no further.
This is the rat-a-tat-tat sound
you get when you format a disk.
Eventually this can cause the
head to go out of alignment making
reading and writing disks impossible.
Many software houses used this
"error" to protect disks
from being copied, even the Easyscript
disk supplied with the 1541. It
was concern about this that caused
me to write my own word processor. |
|
|
|
|
|
|
|
|
|
|
|
|

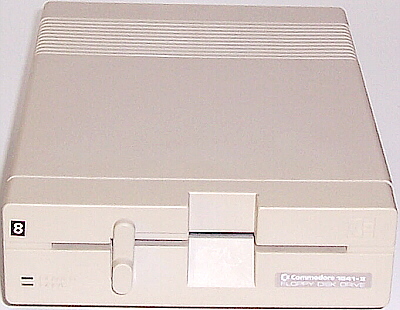

Commodore
1541-II Disk Drive serial number HB5 112824
made in Hong Kong. |
|
The 1541
Mark 2 was introduced in 1988. It has an external
power supply and a smaller footprint. Disk
operation is quieter and smoother than the
1541. The case has a lighter colour to match
the 64C. |
|
|
|

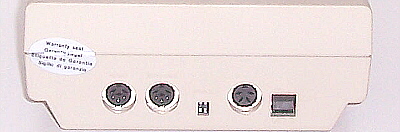

Rear View |
|
The device number
can easily be changed as required (with
the drive turned off!) using the two
dip switches at the back of the 1541-II.
Disk drives can be any number from 08
to 11. |
|
|
|
|
|
|
My
Mk-II 1541 Drives |
|
|
|
|
|
|
|
|
|
|
|
Serial
BLS 075021 (Hong Kong) |
Serial
HB5 034265 (China) |
Serial
HB5 083561 (China) |
|
|
|
|
|
|
|
|
|
Serial
HB5 112824 (Hong Kong) |
Serial
HB5 267988 (China) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Commodore
4040 serial WG 2357 made in W.Germany. |
Commodore
8050 serial M4002163 made in USA. |
|
|
While
the Datassette tape deck was the first
storage device bought by most PET owners,
a disk drive was much faster and more
suited to business users. Commodore
produced a range of dual drives, taking
the new 5¼ inch disks. Earlier
disks had been a massive eight inches,
so the 5¼ inch ones were called
diskettes. |
|
While the 4040 and the 1541 can read
each others disks, BASIC programs load
to different addresses on different
computers. In general disks, drives
and computers cannot be swapped. Most
later drives used the serial interface. |
I
have a second 8050 (M4009754). These
three drives connect using an IEEE-488
cable with a special plug on the end
that fits the edge connector at the
back of the PET. A printer could be
attached to the disk drive using a standard
IEEE-488 cable. |
|
|
|
|
|
|
|
Commodore
1551 serial AD4 004969 made in Japan. |

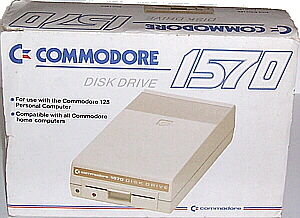

Commodore
1570 serial DA5 15055 made in W.Germany. |
|
|
Suitable
for the Plus/4, the 1551 connects to
the user port instead of the more usual
(for Commodore) serial port. It has
the same style of case as the 1541 rather
than that of the 1541-II. Since the
1551 could only be used with the Plus/4,
most people used the 1541 or the 1541-II. |
Designed
for the 128, the 1570 was a temporary
solution to the as yet unready 1571.
Still, most people stuck with the 1541
and the 1541-II as these were readily
available and could be used with other
Commodores. |
|
|
|
|
|
|
|
Commodore
1571 serial DA5 53575 made in W.Germany. |
Commodore
1581 serial 00564 made in Taiwan. |
|
|
This
was the top of the range disk drive
for the 128 and 128D. Capable of faster
speeds, greater density and using double
sided disks. An internal power supply
but does not get as warm as other models. |
Unusual
for 8 bit Commodores, a 3.5 inch disk
drive. Works with the 64 but is more
suited to the 128 and 128D. On sale
from 1987, the 1581 is much smaller
than any other Commodore disk drive. |
|
|
|
|
|
|
|

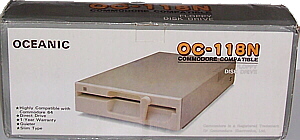

Oceanic
OC-118N serial 1028550 made in Taiwan. |
|
|
|
A
substitute for the 1541 and other drives,
the Oceanic disk drive is smaller and
lighter. Third party hardware was rather
limited due to protectionist action
by Commodore. |
The
1551 connects to the user port instead
of the more usual (for Commodore) serial
port. The rear of the plug has a connector
for more devices. |
|
|
|
|
|
|
|
|
